12v Lead Acid Battery , Deep Discharge Lead Acid Battery 150ah For Utilities

12v Lead Acid Battery , Deep Discharge Lead Acid Battery 150ah For Utilities
12v Lead Acid Battery , Deep Discharge Lead Acid Battery 150ah For Utilities

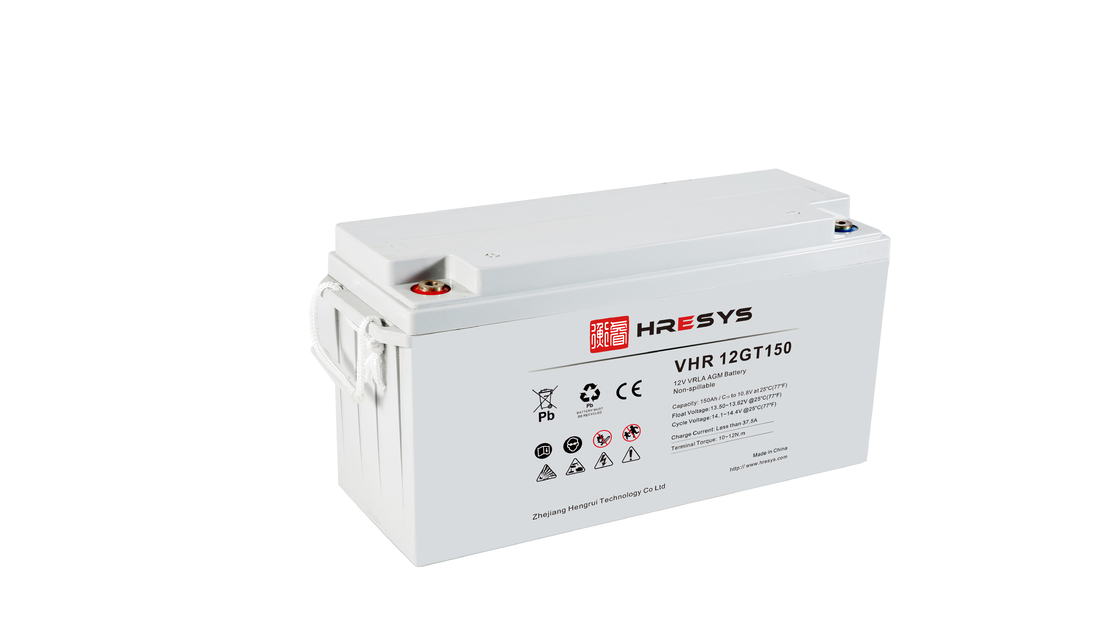

Large Image :  12v Lead Acid Battery , Deep Discharge Lead Acid Battery 150ah For Utilities

Product Details:
Place of Origin: China
Brand Name: HRESYS
Certification: CE
Model Number: VHR 12GT150
Payment & Shipping Terms:
Minimum Order Quantity: 10 Pcs
Price: Negotiable
Packaging Details: Box/carton(standard package)
Delivery Time: 30 DAYS
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1800000 PCS/YEAR

12v Lead Acid Battery , Deep Discharge Lead Acid Battery 150ah For Utilities

Description
Product Name: 12 V Lead-acid Batteries Application: Utilities
Capacity: 150 Ah Nominal Voltage (V): 12
Float Charge Voltage: 13.6V/block @25℃ Internal Resistance: Approx. 0.0035 Ohm (fully Charged@20℃)
Weight: 40.8 Kg (89.9 Lbs.) Dimension: L483mm X W170mm X H241mm
High Light:

12v rechargeable lead acid battery

,

deep cycle lead acid battery

12V 150AH Lead-acid Batteries for utilities , L483mm x W170mm x H241mm



  • Product Overview

HRESYS GT Series Valve Regulated Lead Acid Battery is specially designed for utilities.

Applications including renewable energy system, UPS, security and alarm systems, telecommunication, utilities, emergency light systems, CATV and other backup applications

With international leading technologies and State-of-the-art automated manufacturing, GT series offer long cycle life, large current discharge capability, high consistency reliability and safety, and environmental-friendly.



  • Product Specification​
Nominal Voltage (V) 12
Nominal Capacity (25 C) 150 Ah@C10 (to 1.80Vpc)
Dimension (mm) L483mm x W170mm x H241mm
Approx. Weight 40.8 kg (89.9 lbs.)
Terminal Type Female Copper Insert M8
Internal Resistance Approx. 0.0035 Ohm (fully charged@ 20°C)
Max. Charge Current 37.5 A
Self-Discharge Approx. 3% per month @ 20°C
Ambient Temperature

Discharge: -40~55°C

Charge: -20~50 °C

Storage: -20~45°C

Float Charge Voltage 13.6V/cell @25℃
Equalize Charge Voltage 14.4V/cell @25℃
Container Material ABS (UL94-V0 optional)



  • Applications

o Renewable energy

o Outdoor telecom

o Mini Solar Power System

o UPS

o emergency light systems

o Solar street light



  • Features and Benefits​

- Long Cycle Life: 12 years design float life @ 25℃

- Multi-purpose Application: The battery can be floating application as well as cyclic application

- Low Self-discharge: Adopted high quality grid alloy and high purity electrolyte, low self-discharge

- High Reliability and Safety: Adopted enhanced ABS container and special design safety valve to ensure battery high durable, safe and reliable



  • Complied standards

o IEC 6 - 1056-1

o GB/T 22199

o GB/T 19639-1

o JIS C870 - 2 1



  • Management and Product Certificates

o ISO9001:2015

o ISO14001:2015

o OHSAS18001:2007

o CE Certificate



  • Battery Dimension

12v Lead Acid Battery , Deep Discharge Lead Acid Battery 150ah For Utilities 0



  • Performance Curves

Cyclic Characteristics

High cycle performance: up to 450 cycle at 80%DOD

12v Lead Acid Battery , Deep Discharge Lead Acid Battery 150ah For Utilities 1



  • Charge/discharge Characteristics

12v Lead Acid Battery , Deep Discharge Lead Acid Battery 150ah For Utilities 2



  • Self-Discharge Characteristics

12v Lead Acid Battery , Deep Discharge Lead Acid Battery 150ah For Utilities 3



  • Temperature Characteristics

12v Lead Acid Battery , Deep Discharge Lead Acid Battery 150ah For Utilities 4



  • Float voltage VS float life

12v Lead Acid Battery , Deep Discharge Lead Acid Battery 150ah For Utilities 5



  • Capacity VS temperature

12v Lead Acid Battery , Deep Discharge Lead Acid Battery 150ah For Utilities 6
