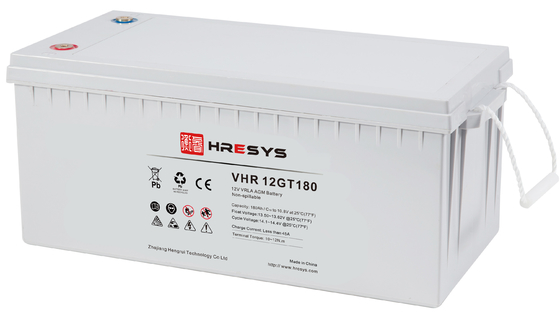

180AH Sealed Lead Acid Battery For Solar System 53 Kg Long Cycle Life

180AH Sealed Lead Acid Battery For Solar System 53 Kg Long Cycle Life
180AH Sealed Lead Acid Battery For Solar System 53 Kg Long Cycle Life

Large Image :  180AH Sealed Lead Acid Battery For Solar System 53 Kg Long Cycle Life

Product Details:
Place of Origin: China
Brand Name: HRESYS
Certification: CE
Model Number: VHR 12GT180
Payment & Shipping Terms:
Minimum Order Quantity: 10 Pcs
Price: Negotiable
Packaging Details: Box/carton(standard package)
Delivery Time: 30 DAYS
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1800000 PCS/YEAR

180AH Sealed Lead Acid Battery For Solar System 53 Kg Long Cycle Life

Description
Product Name: 12 V Lead-acid Batteries Application: Solar Street Light
Capacity: 180 Ah Nominal Voltage (V): 12
Float Charge Voltage: 13.6V/block @25℃ Internal Resistance: Approx. 0.0033 Ohm (fully Charged@20℃)
Weight: 53 Kg (116.8 Lbs.) Dimension: L520mm X W240mm X H220mm
High Light:

flooded lead acid battery

,

deep cycle lead acid battery

12V 180AH Lead-acid Batteries for solar street light , L520mm x W240mm x H220mm



  • Product Overview

HRESYS GT Series Valve Regulated Lead Acid Battery is specially designed for solar street light.

Applications including renewable energy system, UPS, security and alarm systems, telecommunication, utilities, emergency light systems, CATV and other backup applications

With international leading technologies and State-of-the-art automated manufacturing, GT series offer long cycle life, large current discharge capability, high consistency reliability and safety, and environmental-friendly.​



  • Product Specification​
Nominal Voltage (V) 12
Nominal Capacity (25 C) 180 Ah@C10 (to 1.80Vpc)
Dimension (mm) L520mm x W240mm x H220mm
Approx. Weight 53 kg (116.8 lbs.)
Terminal Type Female Copper Insert M8
Internal Resistance Approx. 0.0033 Ohm (fully charged@ 20°C)
Max. Charge Current 45 A
Self-Discharge Approx. 3% per month @ 20°C
Ambient Temperature

Discharge: -40~55°C

Charge: -20~50 °C

Storage: -20~45°C

Float Charge Voltage 13.6V/cell @25℃
Equalize Charge Voltage 14.4V/cell @25℃
Container Material ABS (UL94-V0 optional)



  • Applications

o Renewable energy

o Outdoor telecom

o Mini Solar Power System

o UPS

o emergency light systems

o Solar street light



  • Features and Benefits​

- Long Cycle Life: 10 years long life design @ 25℃

- Multi-purpose Application: The battery can be used for backup application

- Low Self-discharge: Adopted high quality grid alloy and high purity electrolyte, low self-discharge

- High Reliability and Safety: Adopted enhanced ABS container and special design safety valve to ensure battery high durable, safe and reliable



  • Complied standards

o IEC 6 - 1056-1

o GB/T 22199

o GB/T 19639-1

o JIS C870 - 2 1



  • Management and Product Certificates

o ISO9001:2015

o ISO14001:2015

o OHSAS18001:2007

o CE Certificate



  • Battery Dimension

180AH Sealed Lead Acid Battery For Solar System 53 Kg Long Cycle Life 0



  • Performance Curves

Cyclic Characteristics

High cycle performance: up to 450 cycle at 80%DOD

180AH Sealed Lead Acid Battery For Solar System 53 Kg Long Cycle Life 1



  • Charge/discharge Characteristics

180AH Sealed Lead Acid Battery For Solar System 53 Kg Long Cycle Life 2



  • Self-Discharge Characteristics

180AH Sealed Lead Acid Battery For Solar System 53 Kg Long Cycle Life 3



  • Temperature Characteristics

180AH Sealed Lead Acid Battery For Solar System 53 Kg Long Cycle Life 4



  • Float voltage VS float life

180AH Sealed Lead Acid Battery For Solar System 53 Kg Long Cycle Life 5



  • Capacity VS temperature

180AH Sealed Lead Acid Battery For Solar System 53 Kg Long Cycle Life 6
