200AH Tubular Gel Valve Regulated Sealed Battery For Cyclic Standby Application

200AH Tubular Gel Valve Regulated Sealed Battery For Cyclic Standby Application
200AH Tubular Gel Valve Regulated Sealed Battery For Cyclic Standby Application

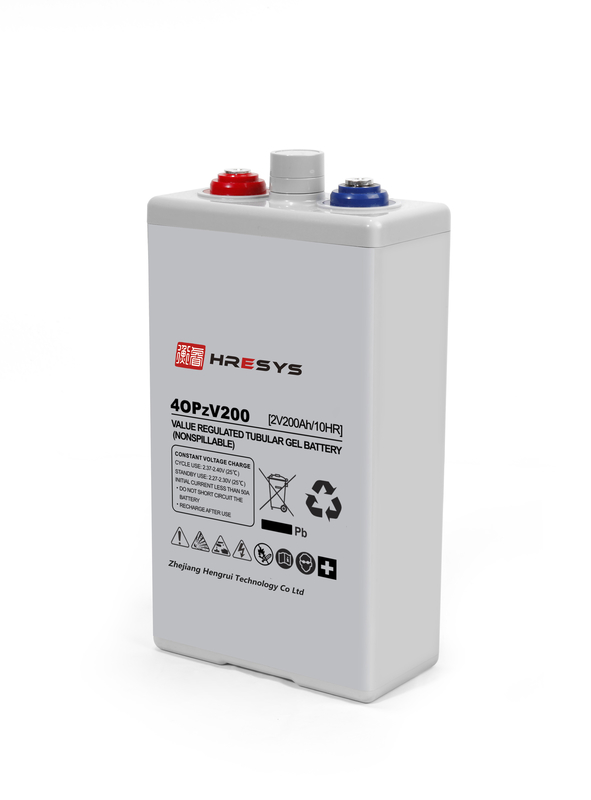

Large Image :  200AH Tubular Gel Valve Regulated Sealed Battery For Cyclic Standby Application

Product Details:
Place of Origin: China
Brand Name: HRESYS
Certification: CE
Model Number: 4 OPzV 200
Payment & Shipping Terms:
Minimum Order Quantity: 10 Pcs
Price: Negotiable
Packaging Details: Box/carton(standard package)
Delivery Time: 30 DAYS
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1800000 PCS/YEAR

200AH Tubular Gel Valve Regulated Sealed Battery For Cyclic Standby Application

Description
Product Name: 2 V Tubular Gel Batteries Application: Telecom, Cyclic And Standby Application
Capacity: 200 Ah Nominal Voltage (V): 2
Float Charge Voltage: 2.23V/block@25°C(-3mV/°/cell) Internal Resistance: Approx. 0.98 Ohm (fully Charged@20°C)
Weight: 17.3 Kg (38.1 Lbs) Dimension: L103mm X W206mm X H390mm
High Light:

telecom batteries for solar

,

lithium ion battery for telecom application

2 V 200AH Valve Regulated Tubular Gel Battery for telecom, cyclic and standby application, L103mm x W206mm x H390mm



  • Product Overview

HRESYS OPzV series is specially designed with the robust die cast positive tubular plate and fumed gelled electrolyte, it offers perfect deep cycling life and high-level reliability with 20 years design life. HRESYS OPzV series compliance with the DIN standard, it’s suitble for use in renewable energy system, telecom and other cyclic and standby harsh environment applications.



  • Features and Benefits

- 20 years design life at floating condition

- Tubular positive plate and fumed silica gel enables excellent deep cycle performance

- Excellent deep discharge recovery capability

- Reliable maintenance-free and leakage-free construction

- Din standard compliance

- Low self-discharge rate and long shelf life (1 year at 25°C)

- Low density electrolyte reduce corrosion and enable long service life

- Wide operating temperature range from -40°C to 60°C



  • Applications

o Renewable energy

o Telecom

o UPS

o Utility

200AH Tubular Gel Valve Regulated Sealed Battery For Cyclic Standby Application 0200AH Tubular Gel Valve Regulated Sealed Battery For Cyclic Standby Application 1

  •  Complied standards
    • IEC 60896-21/22
    • DIN40472
    • IEC61427
    • YD/T1360
    • Eurobat guide, long life
    • BS6290 part 4



  •  Management and Product Certificates
    • ISO9001:2015
    • ISO14001:2015
    • OHSAS18001:2007
    • CE Certificate



  •  Product Specification​
Nominal Voltage (V) 2
Designed floating life(25°C) 20+ Years
Nominal Capacity (25°C) 200 Ah @ C10 (to 1.80Vpc)
Dimension (mm) L103mm x W206mm x H390mm
Approx. Weight 17.3 kg (38.1 lbs)
Terminal Type Female Copper Insert M8(torque: 10~12N.m)
Internal Resistance Approx. 1.98 Ohm (fully charged)
Max. Charge Current 50A
Max. Discharge Current 1000A
Short Circuit current 1800A
Self-Discharge Approx. 2.0% per month @ 20°C
Ambient Temperature Discharge: -40~60°C
Charge: -30~55 C
Storage: -25~45 C
Float Charge Voltage 2.23V/block @25℃
Equalize Charge Voltage 2.35V @25℃
Container Material ABS UL (94-V0 optional)





  •  Battery Dimension
    • High cycle performance: up to 400 ~ 600 cycle at 100%DOD

200AH Tubular Gel Valve Regulated Sealed Battery For Cyclic Standby Application 2



  •  Performance Curves



· Cyclic Characteristics

High cycle performance: up to 1800 cycle at 800%DOD



· Charge Characteristics

200AH Tubular Gel Valve Regulated Sealed Battery For Cyclic Standby Application 3



200AH Tubular Gel Valve Regulated Sealed Battery For Cyclic Standby Application 4200AH Tubular Gel Valve Regulated Sealed Battery For Cyclic Standby Application 5
