6-EVF-32A EV Battery Pack Vibration Resistance High Efficient Charging

6-EVF-32A EV Battery Pack Vibration Resistance High Efficient Charging
6-EVF-32A EV Battery Pack Vibration Resistance High Efficient Charging

Large Image :  6-EVF-32A EV Battery Pack Vibration Resistance High Efficient Charging

Product Details:
Place of Origin: China
Brand Name: HRESYS
Certification: CE
Model Number: 6-EVF-32A
Payment & Shipping Terms:
Minimum Order Quantity: 10 Pcs
Price: Negotiable
Packaging Details: Box/carton(standard package)
Delivery Time: 30 DAYS
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1800000 PCS/YEAR

6-EVF-32A EV Battery Pack Vibration Resistance High Efficient Charging

Description
Product Name: 12V Lead-acid Batteries Application: Electric Vehicles
Capacity: 32 Ah Nominal Voltage (V): 12 (6 Cells Per Unit)
Float Charge Voltage: 2.27V/cell - 2.30V/cell @25℃ Weight: 9.8 Kg
Dimension: L266 X W76 X H170mm
High Light:

electric vehicle battery pack

,

li ion battery for electric vehicle

6-EVF-32A EVF series VRLA AGM+Gel Battery for electric vehicles , 266 x76 x 170 mm



  • Product Overview

EVF series deliveries excellent deep cycle life, extreme shock and vibration resistance, high reliability, safety and Eco-friendly performance.

EVF series deliveries excellent deep cycle life, extreme shock and vibration resistance, high reliability, safety and Eco-friendly performance.

HRESYS EVF series VRLA AGM+Gel Battery is specially designed for electric vehicles,including electric tricycles, electric automobiles, special electric vehicle and other devices require DC power source. With leading technologies and state-of-the-art automated manufacturing



  • Features and Benefits​

- Very environmental protection

- Maintenance free

- Extreme shock and vibration resistance

- Exceptional cyclic performance above 400 cycles @100% DoD

- Advanced VRLA AGM+Gel technology - more power



  • Applications

o EV

o Electric tricycle

o Electric automobile

o Ground vehicle, i.e.

o Golf cart.

o Sightseeing bus.

o Sanitation truck.

o Fork-lift etc.



  • Product Specification
Nominal Voltage (V) 12 (6 cells per unit)
Nominal Capacity (25 C) 32 Ah@3HR-rate
Dimension (mm) L266 x W76 x H170mm
Approx. Weight 9.8 kg
Terminal Type Female Copper Insert M5
Internal Resistance
Self Discharge
Ambient Temperature Discharge: -20~55°C
Charge: -20~45 C
Storage: -20~45 C
Float Charge Voltage 2.27V/cell - 2.30V/cell @25℃
Cycle life ≥ 400 cycles @ 100% DOD
Container Material ABS UL ( 94-V0 optional)



  • Complied standards

o IEC 6 - 1056-1

o GB/T 22199

o GB/T 19639-1

o JIS C870 - 2 1



  • Management and Product Certificates

o ISO9001:2015

o ISO14001:2015

o OHSAS18001:2007

o CE Certificate

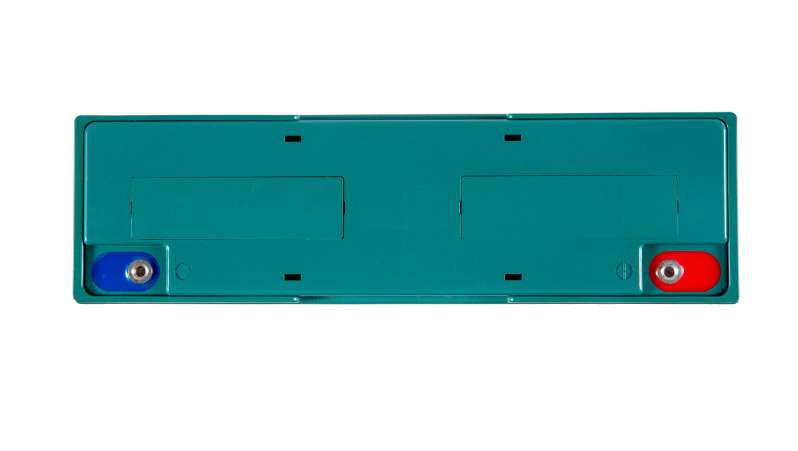

  • Battery Dimension
    • Discharge and Charge Conditions (80%DOD, 20 to 25℃)

(1) Cycle method: Discharge with 2I10 for 4 hours (80% DOD), charge with 2I10 for 3.5hour + I10 for 1hour + 0.25I10 for 3.5hour. This is one cycle.



(2) Residue Capacity determination: The batteries are discharged at 10 hour rate after every 50 cycles to test battery capacity. When residue capacity of 10 hour rate capacity is lower than 80%, test is ended. After discharge at 10 hour rate after every 50cycles, the charge method is: charge 80% of discharged capacity with current of 2I10 + charge 20% with current of I10 + charge 20% with current of 0.4I10 (i.e. charge 120% of discharged capacity)



  • Performance Curves

6-EVF-32A EV Battery Pack Vibration Resistance High Efficient Charging 0
