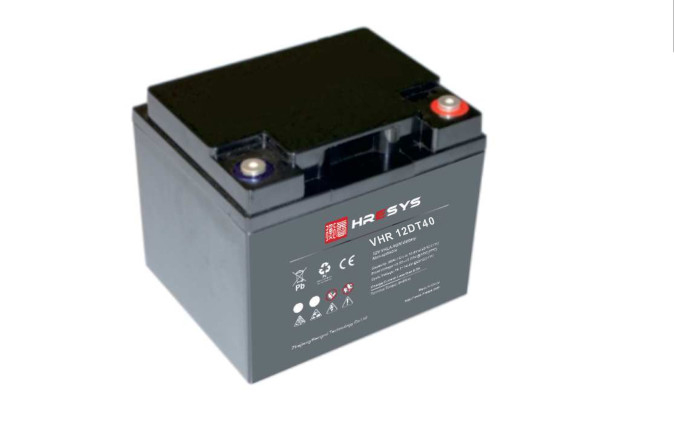

Industrial Telecom Sealed Lead Acid Battery , Residential Solar Battery 12V 40AH

Industrial Telecom Sealed Lead Acid Battery , Residential Solar Battery 12V 40AH
Industrial Telecom Sealed Lead Acid Battery , Residential Solar Battery 12V 40AH

Large Image :  Industrial Telecom Sealed Lead Acid Battery , Residential Solar Battery 12V 40AH

Product Details:
Place of Origin: China
Brand Name: HRESYS
Certification: CE
Model Number: VHR 12DT40
Payment & Shipping Terms:
Minimum Order Quantity: 10 Pcs
Price: Negotiable
Packaging Details: Box/carton(standard package)
Delivery Time: 30 DAYS
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1800000 PCS/YEAR

Industrial Telecom Sealed Lead Acid Battery , Residential Solar Battery 12V 40AH

Description
Product Name: 12 V Lead-acid Batteries Capacity: 40 Ah
Float Charge Voltage: 13.6V/block @25℃ Weight: 12.3 Kg (27.1 Lbs.)
Application: Telecom Nominal Voltage (V): 12 (6 Cells Per Unit)
Internal Resistance: Approx. 0.010 Ohm (fully Charged@20℃) Dimension: L196mm X W165mm X H175mm
High Light:

home battery system

,

home energy storage system

12V 40AH Duration Top Terminal Lead-acid Batteries for Telecom, L196mm x W165mm x H175mm



  • Product Overview



HRESYS VRLA Superior Cycle Gel battery is designed for renewable energy systems, outdoor telecom and other harsh environment require high cycle applications. With advanced nano gel electrolyte and high cyclic paste manufacturing technique, SCG series delivers excellent performance like high cycle life, good high&low temperature performance.



  • Product Specification​



Nominal Voltage (V) 12
Nominal Capacity (25 C) 40 Ah@C10 (to 1.80Vpc)
Dimension (mm) L196mm x W165mm x H175mm
Approx. Weight 12.3 kg (27.1 lbs.)
Terminal Type Female Copper Insert M6
Internal Resistance Approx. 0.010 Ohm (fully charged@ 20°C)
Max. Charge Current 10 A
Self-Discharge Approx. 3% per month @ 25°C
Ambient Temperature

Discharge: -20~55°C

Charge: -20~50 °C

Storage: -20~45°C

Float Charge Voltage 13.6V/block @25℃
Equalize Charge Voltage 14.4V/block @25℃
Container Material ABS (UL94-V0 optional)



  • Features and Benefits​
    • Long Cycle Life: 15 years long life design @ 25℃
    • Multi-purpose Application: The battery can be floating application as well as cyclic application
    • Low Self-discharge: Adopted high quality grid alloy and high purity electrolyte, low self-discharge
    • High Reliability and Safety: Adopted enhanced ABS container and special design safety valve to ensure battery high durable, safe and reliable
    • Valve Regulated Lead Acid Silicon Gel technology
    • Thick plate with excessive active material enables excellent cyclic performance
    • Maintenance-free operation and non-leakage
    • Wide operation temperature range for multiple working scenarios



  • Applications



o Outdoor telecom

o UPS

o IDC

o Security and alarm system

o Utilities

o Emergency light systems

o CATV



  • Complied standards



o IEC 6 - 1056-1

o GB/T 22199

o GB/T 19639-1

o JIS C870 - 2 1



  • Management and Product Certificates



o ISO9001:2015

o ISO14001:2015

o OHSAS18001:2007

o CE Certificate





  • Battery Dimension



Industrial Telecom Sealed Lead Acid Battery , Residential Solar Battery 12V 40AH 0



  • Performance Curves

· Cyclic Characteristics

   High cycle performance: up to 550 cycle at 80%DOD



12 V 120 AH Superior Cycle Gel Lead-acid Batteries for Cyclic Applications with Frequent Cycles, L405mm x W174mm x H232m
