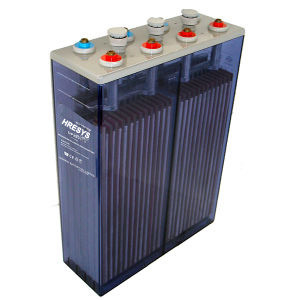

Tubular Flooded Lead Acid Deep Cycle Battery For Utility UPS Telecom Renewable Energy

Tubular Flooded Lead Acid Deep Cycle Battery For Utility UPS Telecom Renewable Energy
Tubular Flooded Lead Acid Deep Cycle Battery For Utility UPS Telecom Renewable Energy

Large Image :  Tubular Flooded Lead Acid Deep Cycle Battery For Utility UPS Telecom Renewable Energy

Product Details:
Place of Origin: China
Brand Name: HRESYS
Certification: CE
Model Number: 20OpzS2500
Payment & Shipping Terms:
Minimum Order Quantity: 10 Pcs
Price: Negotiable
Packaging Details: Box/carton(standard package)
Delivery Time: 30 DAYS
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1800000 PCS/YEAR

Tubular Flooded Lead Acid Deep Cycle Battery For Utility UPS Telecom Renewable Energy

Description
Product Name: 2 V Tubular Flooded Batteries Capacity: 2500 Ah
Float Charge Voltage: 2.23V @25 C (-3mV / C/ Cell) Approx. Weight: Without Electrolyte: 131Kg (288.8 Lbs) With Electrolyte: 183Kg (403.4 Lbs)
Application: Utility, UPS, Telecom And Renewable Energy Nominal Voltage (V): 2
Internal Resistance: Approx. 0.18 MOhm (fully Charged @ 20°C) Dimension: L487mm×W212mm×H826mm
High Light:

flooded lead acid battery

,

12v rechargeable lead acid battery

2 V 2500 AH Tubular Flooded Batteries for Utility, UPS, Telecom and Renewable Energy, 20OpzS2500, L487mm×W212mm×H826mm



  • Product Overview



Hresys OPzS Flooded Classic batteries utilize Advanced Tubular Plate Technology to deliver long service life with low maintenance requirements, and it provides reliable energy storage for Stationary Backup and Telecom Networks, Road Surface, and Rail Traffic Signaling Systems, Solar, Wind, and Hybrid Off-grid and Grid-tie renewable energy applications.



  • Features and Benefits​
  • Long Cycle Life
  • Low Total Cost of Ownership
  • DIN40736-1 standard compliance
  • IEC61427 standard compliance
  • High Security
  • Low Maintenance



  • Product Specification​



Nominal Voltage (V) 2
Nominal Capacity (25 C) 2500 Ah @ C10 (to 1.80Vpc)
Dimension (mm) L487mm×W212mm×H826mm
Approx. Weight

Without electrolyte: 131Kg (288.8 lbs)

With electrolyte: 183Kg (403.4 lbs)

Terminal Type Female Copper Insert M8 (torque:10~12N.m)
Internal Resistance Approx. 0.18 mOhm (fully charged @ 20°C)
Max. Charge Current 625 A
Self Discharge Approx. 4% per month @ 20°C
Ambient Temperature Discharge: -20~60°C
Charge: -20~55 °C
Storage: -15~45°C
Float Charge Voltage 2.23V @25 C (-3mV / C/ cell)
Equalize Charge Voltage 2.35V @25 C
Container Material SAN



  • Applications



  • Stationary Backup
  • Telecom Networks
  • Road Surface
  • Rail Traffic Signaling Systems



  • Complied standards



  • IIEC 60896-11
  • DIN40736
  • IEC61427
  • Eurobat guide, long life
  • BS6290 part 4



  • Management and Product Certificates



o ISO9001:2015

o ISO14001:2015

o OHSAS18001:2007

o CE Certificate





  • Battery Dimension



Tubular Flooded Lead Acid Deep Cycle Battery For Utility UPS Telecom Renewable Energy 0



  • Performance Curves

Tubular Flooded Lead Acid Deep Cycle Battery For Utility UPS Telecom Renewable Energy 1
