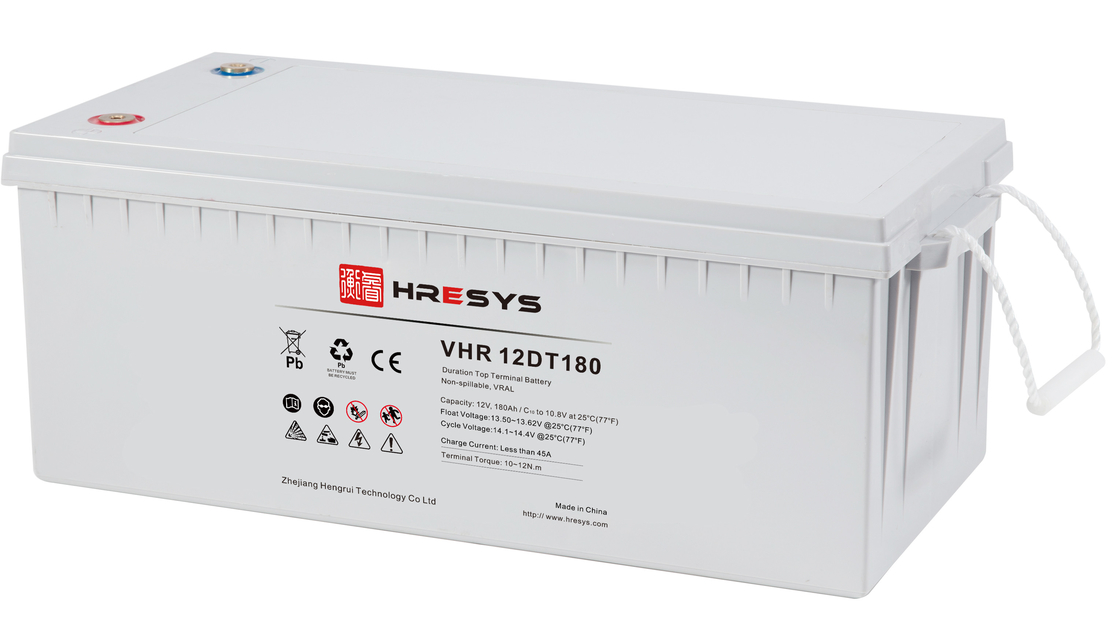

180AH Reliable UPS Lead Acid Battery Wide Operation Temperature Range

180AH Reliable UPS Lead Acid Battery Wide Operation Temperature Range
180AH Reliable UPS Lead Acid Battery Wide Operation Temperature Range

Large Image :  180AH Reliable UPS Lead Acid Battery Wide Operation Temperature Range

Product Details:
Place of Origin: China
Brand Name: HRESYS
Certification: CE
Model Number: VHR 12DT180
Payment & Shipping Terms:
Minimum Order Quantity: 10 Pcs
Price: Negotiable
Packaging Details: Box/carton(standard package)
Delivery Time: 30 DAYS
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1800000 PCS/YEAR

180AH Reliable UPS Lead Acid Battery Wide Operation Temperature Range

Description
Product Name: 12 V Lead-acid Batteries Capacity: 180 Ah
Float Charge Voltage: 13.6V/block @25℃ Weight: 53.3kg (117.5 Lbs.)
Application: Utilities Nominal Voltage (V): 12 (6 Cells Per Unit)
Internal Resistance: Approx. 0.0033Ohm (fully Charged@20℃) Dimension: L532mm X W207mm X H210mm
High Light:

ups rechargeable battery

,

ups external battery pack

12V 180AH Duration Top Terminal Lead-acid Batteries for utilities, L532mm x W207mm x H210mm



  • Features and Benefits​

· Excellent cyclic performance thanks to thick plate with excessive active material enables

· Silicon Gel technology applied in electrolyte to prevent water loss and to resist thermal runaway

· Available for multiple applications

· Wide operation temperature range



  • Product Specification​



Nominal Voltage (V) 12
Nominal Capacity (25 C) 180 Ah@C10 (to 1.80Vpc)
Dimension (mm) L532mm x W207mm x H210mm
Approx. Weight 53.3 kg (117.5 lbs.)
Terminal Type Female Copper Insert M8
Internal Resistance Approx. 0.0033 Ohm (fully charged@ 20°C)
Max. Charge Current 45 A
Self-Discharge Approx. 3% per month @ 25°C
Ambient Temperature

Discharge: -20~55°C

Charge: -20~50 °C

Storage: -20~45°C

Float Charge Voltage 13.6V/block @25℃
Equalize Charge Voltage 14.4V/block @25℃
Container Material ABS (UL94-V0 optional)



  • Product Overview



HRESYS DT Series Duration Top Terminal Valve Regulated Lead Acid Battery is specially designed for UPS

Applications including telecom, UPS, IDC, security and alarm system, utilities, emergency light systems, CATV and other backup applications.

With corrosion resistance thick grid, international leading technologies and State-of-the-art automated manufacturing, DT series offer long cycle life, large current discharge capability, high consistency reliability and safety, and environmental-friendly.​



  • Applications



o Outdoor telecom

o UPS

o IDC

o Security and alarm system

o Utilities

o Emergency light systems

o CATV



  • Complied standards



o IEC 6 - 1056-1

o GB/T 22199

o GB/T 19639-1

o JIS C870 - 2 1



  • Management and Product Certificates



o ISO9001:2015

o ISO14001:2015

o OHSAS18001:2007

o CE Certificate





  • Battery Dimension



180AH Reliable UPS Lead Acid Battery Wide Operation Temperature Range 0



  • Performance Curves

· Cyclic Characteristics

   High cycle performance: up to 550 cycle at 80%DOD
