Product Details:
|
| Product Name: | 2 V Tubular Flooded Batteries | Capacity: | 200 Ah |
|---|---|---|---|
| Float Charge Voltage: | 2.23V @25 C (-3mV / C/ Cell) | Approx. Weight: | Without Electrolyte: 12.9Kg (28.4 Lbs) With Electrolyte: 17.6Kg (38.8 Lbs) |
| Application: | Utility, UPS, Telecom And Renewable Energy | Nominal Voltage (V): | 12 (6 Cells Per Unit) |
| Internal Resistance: | Approx. 0.92 MOhm (fully Charged @ 20°C) | Dimension: | L103mm×W206mm×H409mm |
| High Light: | flooded lead acid battery,12v rechargeable lead acid battery |
||

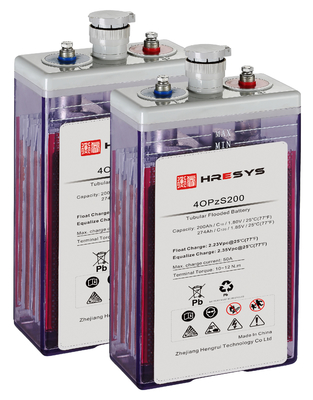

2 V 200 AH Tubular Flooded Batteries for Utility, UPS, Telecom and Renewable Energy, 4OPzS200, L103mm×W206mm×H409mm
HRESYS OPzS Series is traditional tubular flooded battery. OPzS Series offers excellent deep cyclic performance, and extra-long service life, as well as recovery performance thanks to the tubular positive plate and flooded design. OPzS series is mainly designed for renewable energy storage, telecom, emergency power, etc.
| Nominal Voltage (V) | 2 |
| Nominal Capacity (25 C) | 200 Ah @ C10 (to 1.80Vpc) |
| Dimension (mm) | L103mm×W206mm×H409mm |
| Approx. Weight |
Without electrolyte: 12.9Kg (28.4 lbs) With electrolyte: 17.6Kg (38.8 lbs) |
| Terminal Type | Female Copper Insert M8 (torque:10~12N.m) |
| Internal Resistance | Approx. 0.92 mOhm (fully charged @ 20°C) |
| Max. Charge Current | 50 A |
| Self Discharge | Approx. 4% per month @ 20°C |
| Ambient Temperature | Discharge: -20~60°C Charge: -20~55 °C Storage: -15~45°C |
| Float Charge Voltage | 2.23V @25 °C (-3mV / C/ cell) |
| Equalize Charge Voltage | 2.35V @25 °C |
| Container Material | SAN |
o ISO9001:2015
o ISO14001:2015
o OHSAS18001:2007
o CE Certificate
