Product Details:
|
| Product Name: | 12 V Lead-acid Batteries | Capacity: | 200 Ah |
|---|---|---|---|
| Float Charge Voltage: | 13.6V/block @25℃ | Weight: | 57.0kg (125.7 Lbs.) |
| Application: | Emergency Light System | Nominal Voltage (V): | 12 (6 Cells Per Unit) |
| Internal Resistance: | Approx. 0.0033 Ohm (fully Charged@20℃) | Dimension: | L532mm X W207mm X H220mm |
| High Light: | ups rechargeable battery,ups external battery pack |
||

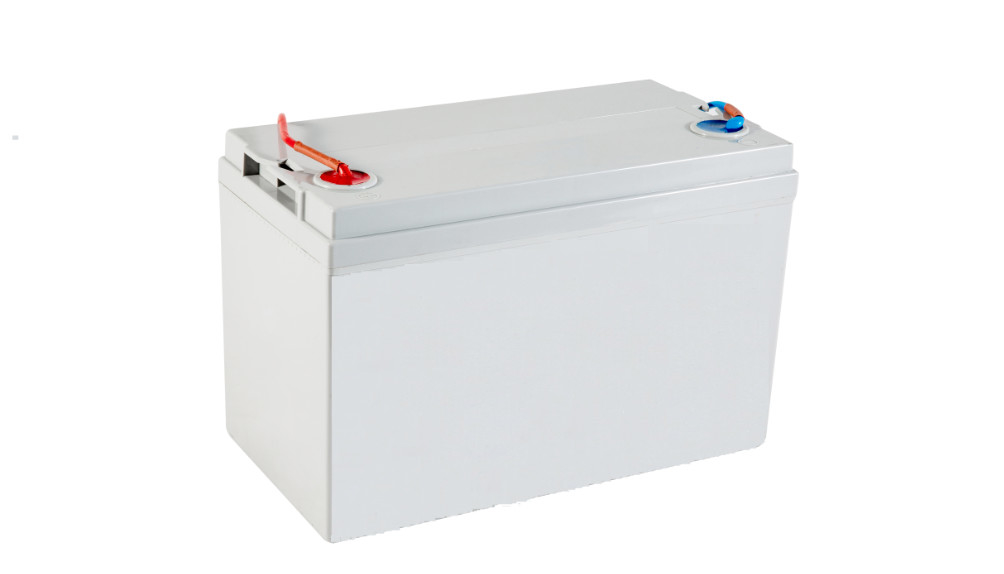

12V 200AH Duration Top Terminal Lead-acid Batteries for emergency light system, L532mm x W207mm x H220mm
HRESYS DT Series Duration Top Terminal Valve Regulated Lead Acid Battery is specially designed for UPS
Applications including telecom, UPS, IDC, security and alarm system, utilities, emergency light systems, CATV and other backup applications.
With corrosion resistance thick grid, international leading technologies and State-of-the-art automated manufacturing, DT series offer long cycle life, large current discharge capability, high consistency reliability and safety, and environmental-friendly.
· Valve Regulated Lead Acid Silicon Gel technology
· Thick plate with excessive active material enables excellent cyclic performance
· Maintenance-free operation and non-leakage
· Wide operation temperature range for multiple working scenarios
| Nominal Voltage (V) | 12 |
| Nominal Capacity (25 C) | 200 Ah@C10 (to 1.80Vpc) |
| Dimension (mm) | L532mm x W207mm x H220mm |
| Approx. Weight | 57.0kg (125.7 lbs.) |
| Terminal Type | Female Copper Insert M8 |
| Internal Resistance | Approx. 0.0033 Ohm (fully charged@ 20°C) |
| Max. Charge Current | 50 A |
| Self-Discharge | Approx. 3% per month @ 25°C |
| Ambient Temperature |
Discharge: -20~55°C Charge: -20~50 °C Storage: -20~45°C |
| Float Charge Voltage | 13.6V/block @25℃ |
| Equalize Charge Voltage | 14.4V/block @25℃ |
| Container Material | ABS (UL94-V0 optional) |
o Outdoor telecom
o UPS
o IDC
o Security and alarm system
o Utilities
o Emergency light systems
o CATV
o IEC 6 - 1056-1
o GB/T 22199
o GB/T 19639-1
o JIS C870 - 2 1
o ISO9001:2015
o ISO14001:2015
o OHSAS18001:2007
o CE Certificate
· Cyclic Characteristics
High cycle performance: up to 550 cycle at 80%DOD
