Product Details:
|
| Product Name: | 12V Lead-acid Batteries | Separator: | PVC |
|---|---|---|---|
| Application: | Renewable Energy System | Capacity: | 150 Ah |
| Nominal Voltage (V): | 12 (6 Cells Per Unit) | Float Charge Voltage: | 13.3~ 13.5 V/block @25℃ |
| Weight: | 56.5 Kg (124.6 Lbs) | Internal Resistance: | Approx. 0.0006 Ohm (fully Charged)Approx. |
| Dimension: | L532mm X W210mm X H216mm | ||
| High Light: | sealed gel batteries,lithium ion battery for telecom application |
||

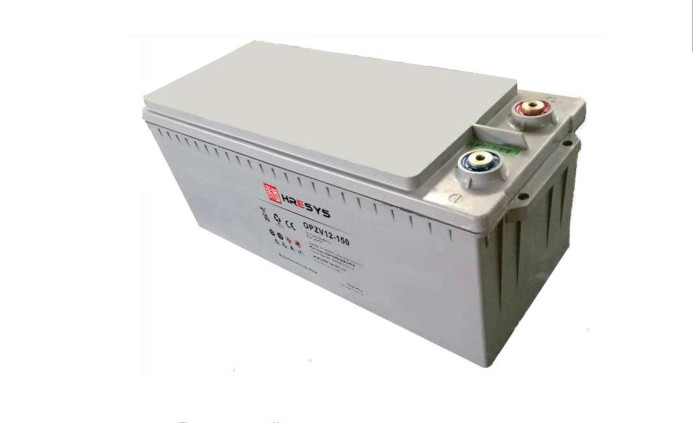

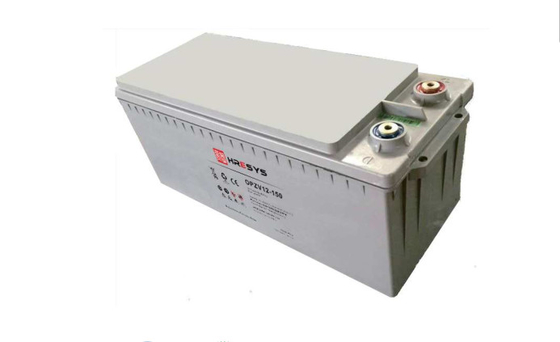

OPzV12-150 12V Tubular Gel Batteryfor Renewable Energy System , 532 x210 x 216 mm
OPzV 12V series offers very good cycle life and high reliability with 12 years life, HRESYS OPzV12-150 With the rubust die cast positive tubular plate design and fumed gelled electrolyte, OPzV 12V series is ideal for use in renewable energy system, telecom and other cyclic/standby harsh environment applications.
OPzV series offer high consistency, long cycle life, large current discharge capability ,reliability and safety, and very environmental protection.
- Low self-discharge rate and long shelf life (1 year at 25°C)
- Excellent deep discharge recovery capability
- Excellent deep discharge recovery capability
- Tubular positive plate and Fumed Silica gel gel electrolyte with prolonged cycle life
low density electrolyte with fast charging
- Reliable maintenance-free and leakage-free construction
- Wide operating temperature range from -40°C to 60°C
- 12 years design life at floating condition
o Home & Mini Energy Storage System
o Uninterrupted Power Supply (UPS)
o Telecom
o Microgrid / Off-grid Power System
o Solar Street Lights
o Emergency Power Supply
| Nominal Voltage (V) | 12 (6 cells per unit) |
| Nominal Capacity (25 C) | 150 Ah@10HR-rate (to 1.80Vpc) |
| Dimension (mm) | L532mm x W210mm x H216mm |
| Approx. Weight | 56.5 kg (124.6 lbs) |
| Terminal Type | Female Copper Insert M8 |
| Internal Resistance | Approx. 0.0006 Ohm (fully charged) |
| Self Discharge | Approx. 2.5% per month @ 20°C |
| Ambient Temperature | Discharge: -20~55°C Charge: -20~45 C Storage: -20~45 C |
| Float Charge Voltage | 13.3 to 13.5V/block @25 C (-3mV/ cell/ C) |
| Cycle Use Charge Voltage | 14.1 to 14.4V/block @25 oC |
| Container Material | ABS UL ( 94-V0 optional) |
o IEC 6 - 1056-1
o GB/T 22199
o GB/T 19639-1
o JIS C870 - 2 1
o ISO9001:2015
o ISO14001:2015
o OHSAS18001:2007
o CE Certificate
High cycle performance: up to 1000 cycle at 80%DOD
1) Cycle method: Total discharge is 80% DOD at customer practice condition, charge with constant current and constant voltage (CC-CV) mode, charge time shall be 10 - 12 hours at least. This is one cycle.
