Product Details:
|
Product Name: | 12V Lead-acid Batteries | Application: | Renewable Energy System |
---|---|---|---|
Capacity: | 60 Ah | Nominal Voltage (V): | 12 (6 Cells Per Unit) |
Float Charge Voltage: | 13.3~ 13.5 V/block @25℃ | Weight: | 21.5 Kg (14.55 Lbs) |
Dimension: | L260mm X W170mm X H210mm | Internal Resistance: | Approx 0.0093 Ohm (fully Charged) |
Separator: | PE | ||
High Light: | sealed gel batteries,lithium ion battery for telecom application |

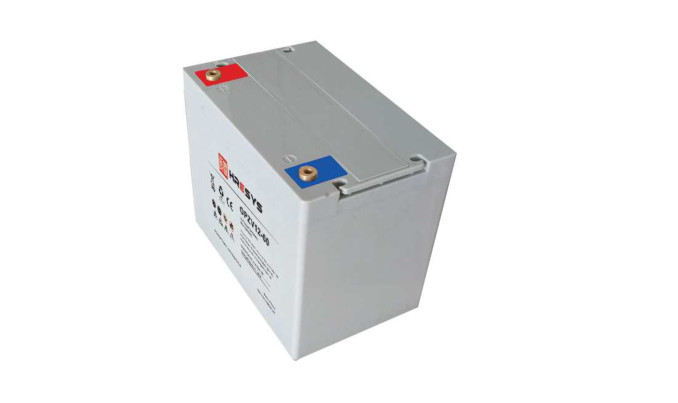

OPZV12-60 12V Tubular Gel Batteryfor Renewable Energy System , L260mm x W170mm x H210mm
HRESYS OPzV12-60 With the rubust die cast positive tubular plate design and fumed gelled electrolyte, OPzV 12V series is ideal for use in renewable energy system, telecom and other cyclic/standby harsh environment applications. OPzV 12V series offers excellent deep cycling life and high level reliability with 12 years design life.
OPzV series offer large current discharge capability , long cycle life ,high consistency.
reliability and safety, and environmental-friendly.
- Tubular positive plate and Fumed Silica gel gel electrolyte with prolonged cycle life
low density electrolyte with fast charging
- large current discharge capability ,
- Lead Calcium die cast grid with improved corrosion resistance capability
- Excellent deep discharge recovery capability
- Reliable maintenance-free and leakage-free construction
- Wide operating temperature range from -40°C to 60°C
- Low self-discharge rate and long shelf life (1 year at 25°C)
o Home & Mini Energy Storage System
o Microgrid / Off-grid Power System
o Solar Street Lights
o Emergency Power Supply
o Telecommunication
o Uninterrupted Power Supply (UPS)
Nominal Voltage (V) | 12 (6 cells per unit) |
Nominal Capacity (25 C) | 60 Ah@10HR-rate (to 1.80Vpc) |
Dimension (mm) | L260mm x W170mm x H210mm |
Approx. Weight | 21.5 kg (47.4 lbs) |
Terminal Type | Female Copper Insert M8 |
Internal Resistance | Approx. 0.0093 Ohm (fully charged) |
Self Discharge | Approx. 2.5% per month @ 20°C |
Ambient Temperature | Discharge: -20~55°C Charge: -20~45 C Storage: -20~45 C |
Float Charge Voltage | 13.3 to 13.5V/block @25 C (-3mV/ cell/ C) |
Cycle Use Charge Voltage | 14.1 to 14.4V/block @25 oC |
Container Material | ABS UL ( 94-V0 optional) |
o IEC 6 - 1056-1
o GB/T 22199
o GB/T 19639-1
o JIS C870 - 2 1
o ISO9001:2015
o ISO14001:2015
o OHSAS18001:2007
o CE Certificate
High cycle performance: up to 1000 cycle at 80%DOD
1) Cycle method: Total discharge is 80% DOD at customer practice condition, charge with constant current and constant voltage (CC-CV) mode, charge time shall be 10 - 12 hours at least. This is one cycle.
