Product Details:
|
| Product Name: | 12 V Lead-acid Batteries | Capacity: | 120 Ah |
|---|---|---|---|
| Float Charge Voltage: | 13.5~ 13.62 V/block @25 C | Weight: | 34.6 Kg (76.3 Lbs) |
| Application: | Cyclic Applications With Frequent Cycles | Nominal Voltage (V): | 12 (6 Cells Per Unit) |
| Internal Resistance: | Approx. 0.004 Ohm (fully Charged @20℃) | Dimension: | L405mm X W174mm X H232mm |
| High Light: | 12v rechargeable lead acid battery,deep cycle lead acid battery |
||

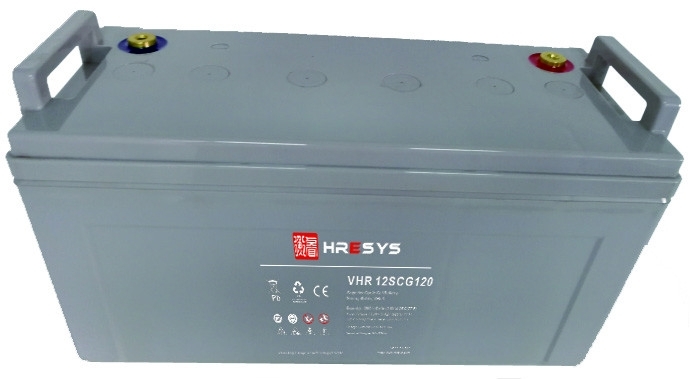

12 V 120 AH Superior Cycle Gel Lead-acid Batteries for Cyclic Applications with Frequent Cycles, L405mm x W174mm x H232m
HRESYS Superior Cycle Gel battery series is called SCG series, with its advanced nano gel electrolyte and thick excessive active material thick plate design, it can deliver high cycle life, excellent high&low temperature performance to multiple applications, such as solar street light, home & mini energy storage system, outdoor telecom, etc.
· 12 years long life design
· Robust design for multiple applications
· Wide operation temperature range for multiple working scenarios
· Available from 38Ah to 250Ah
o Home & Mini Energy Storage System
o Microgrid / Off-grid Power System
o Solar Street Lights
o Telecommunication
o Uninterrupted Power Supply (UPS)
o Emergency Power Supply
o Power Utilities
· Batteries can be working in many occasions, i.e. solar, energy storage, telecom, power utilities, UPS, etc.
· Batteries are normally used in cyclic applications with frequent cycles
· But Depth of Discharge shall normally not exceed 60% when it is used in cyclic scenarios.
· Guarantee is normally provided differently due to different working scenarios
o IEC 60896-21/22
o GB/T 19638
o IEC61427
o JIS C8704
o BS6290 part 4
o ISO9001:2015
o ISO14001:2015
o OHSAS18001:2007
o CE Certificate
| Nominal Voltage (V) | 12 (6 cells per unit) |
| Nominal Capacity (25 C) | 120 Ah@ 10HR-rate (to 1.80Vpc) |
| Dimension (mm) | L405mm x W174mm x H232mm |
| Approx. Weight | 34.6 kg (76.3 lbs) |
| Terminal Type | F-M6 or cable (torqure:6-8N.m for F-M6) |
| Internal Resistance | Approx.0.004 Ohm (fully charged @ 20℃) |
| Max. Charge Current | 30A |
| Max. Discharge Current (5S) | 960A |
| Short Circuit Current | 3000A |
| Self Discharge | Approx. 2.5% per month @ 20°C |
| Ambient Temperature | Discharge: -40~60°C Charge: -20~55 C Storage: -25~45 C |
| Float Charge Voltage | 13.5～13.62V/block @25℃ |
| Equalize & Cycle Use Charge Voltage | 14.1～14.4V/block @25℃ |
| Container Material | ABS(UL94-V0 optional) |
