Product Details:
|
| Product Name: | 2 V Tubular Flooded Batteries | Capacity: | 2500 Ah |
|---|---|---|---|
| Float Charge Voltage: | 2.23V @25 C (-3mV / C/ Cell) | Approx. Weight: | Without Electrolyte: 131Kg (288.8 Lbs) With Electrolyte: 183Kg (403.4 Lbs) |
| Application: | Utility, UPS, Telecom And Renewable Energy | Nominal Voltage (V): | 2 |
| Internal Resistance: | Approx. 0.18 MOhm (fully Charged @ 20°C) | Dimension: | L487mm×W212mm×H826mm |
| High Light: | flooded lead acid battery,12v rechargeable lead acid battery |
||

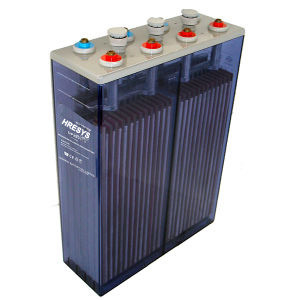

2 V 2500 AH Tubular Flooded Batteries for Utility, UPS, Telecom and Renewable Energy, 20OpzS2500, L487mm×W212mm×H826mm
Hresys OPzS Flooded Classic batteries utilize Advanced Tubular Plate Technology to deliver long service life with low maintenance requirements, and it provides reliable energy storage for Stationary Backup and Telecom Networks, Road Surface, and Rail Traffic Signaling Systems, Solar, Wind, and Hybrid Off-grid and Grid-tie renewable energy applications.
| Nominal Voltage (V) | 2 |
| Nominal Capacity (25 C) | 2500 Ah @ C10 (to 1.80Vpc) |
| Dimension (mm) | L487mm×W212mm×H826mm |
| Approx. Weight |
Without electrolyte: 131Kg (288.8 lbs) With electrolyte: 183Kg (403.4 lbs) |
| Terminal Type | Female Copper Insert M8 (torque:10~12N.m) |
| Internal Resistance | Approx. 0.18 mOhm (fully charged @ 20°C) |
| Max. Charge Current | 625 A |
| Self Discharge | Approx. 4% per month @ 20°C |
| Ambient Temperature | Discharge: -20~60°C Charge: -20~55 °C Storage: -15~45°C |
| Float Charge Voltage | 2.23V @25 C (-3mV / C/ cell) |
| Equalize Charge Voltage | 2.35V @25 C |
| Container Material | SAN |
Rail Traffic Signaling Systems
o ISO9001:2015
o ISO14001:2015
o OHSAS18001:2007
o CE Certificate
