1000AH Tubular Gel Residential Solar Battery , Home Battery System

1000AH Tubular Gel Residential Solar Battery , Home Battery System
1000AH Tubular Gel Residential Solar Battery , Home Battery System

Large Image :  1000AH Tubular Gel Residential Solar Battery , Home Battery System

Product Details:
Place of Origin: China
Brand Name: HRESYS
Certification: CE
Model Number: 10 OPzV 1000
Payment & Shipping Terms:
Minimum Order Quantity: 10 Pcs
Price: Negotiable
Packaging Details: Box/carton(standard package)
Delivery Time: 30 DAYS
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1800000 PCS/YEAR

1000AH Tubular Gel Residential Solar Battery , Home Battery System

Description
Product Name: 2 V Tubular Gel Batteries Application: Power Utilities, Renewable Energy Storage, Telecom Use Applications
Capacity: 1000 Ah Nominal Voltage (V): 2
Float Charge Voltage: 2.23V/block@25°C(-3mV/°/cell) Internal Resistance: Approx. 0.28 Ohm (fully Charged@20°C)
Weight: 71.5 Kg (158 Lbs) Dimension: L233mm X W210mm X H681mm
High Light:

home battery system

,

residential energy storage systems

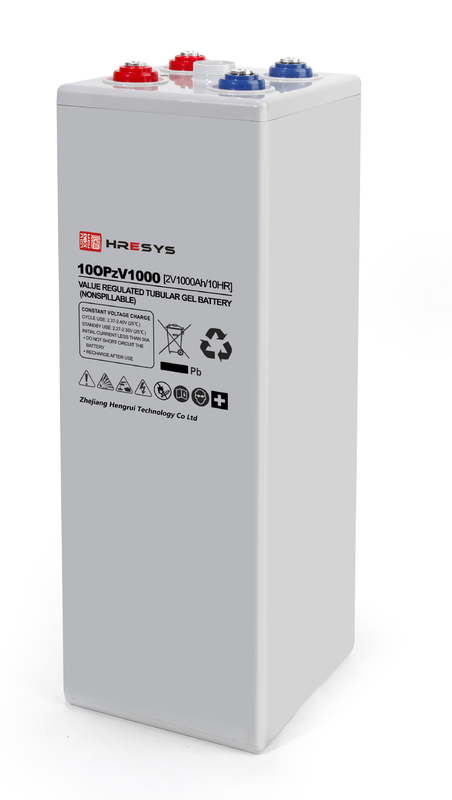

2V 1000AH Tubular Gel OPzV Long Cycle-Life Battery for Power utilities, Renewable energy storage,Telecom use applications, L233mm x W210mm x H681mm



  • Product Overview

HRESYS OPzV Series has excellent deep discharge recovery capability and long circle life, which fit perfectly in power utilities, telecom cyclic use, renewable energy storage applications at harsh working conditions. With specially designed robust die cast positive tubular plate and fumed gelled electrolyte.

HRESYS OPzV Series battery has powerful performance like, long cycle-life, maintenance free and high-level reliability with 20 years design life etc. HRESYS OPzV series complied DIN standard, IEC standard, Eurobat guide etc.



  • Features and Benefits

- Low density electrolyte reduce corrosion and enable long service life

- Reliable maintenance-free and leakage-free construction

- Excellent deep discharge recovery capability

- Tubular positive plate and fumed silica gel enables excellent deep cycle performance

- Compliance with Din standard

- Low self-discharge rate and long shelf life (1 year at 25°C)

- Wide operating temperature range from -40°C to 60°C

- 20 years design life at floating condition



  • Applications

o Renewable energy

o Telecom

o UPS

o Utility



  •  Complied standards
    • IEC 60896-21/22
    • DIN40472
    • IEC61427
    • YD/T1360
    • Eurobat guide, long life
    • BS6290 part 4



  •  Management and Product Certificates
    • ISO9001:2015
    • ISO14001:2015
    • OHSAS18001:2007
    • CE Certificate



  •  Product Specification​
Nominal Voltage (V) 2
Designed floating life(25°C) 20+ Years
Nominal Capacity (25°C) 1000 Ah @ C10 (to 1.80Vpc)
Max. Charge Current 250 A
Max. Discharge Current 2500 A
Short Circuit current 6400 A
Dimension (mm) L275mm x W210mm x H681mm
Approx. Weight 71.5 kg (158 lbs)
Terminal Type Female Copper Insert M8(torque: 10~12N.m)
Internal Resistance Approx. 0.28 Ohm (fully charged)
Float Charge Voltage 2.23V/block @25℃
Equalize Charge Voltage 2.35V @25℃
Self-Discharge Approx. 2.0% per month @ 20°C
Ambient Temperature Discharge: -40~60°C
Charge: -30~55 C
Storage: -25~45 C
Container Material ABS UL (94-V0 optional)





  •  Battery Dimension
    • L275mm x W210mm x H681mm

 1000AH Tubular Gel Residential Solar Battery , Home Battery System 0



  •  Performance Curves



· Cyclic Characteristics

High cycle performance: up to 1800 cycle at 800%DOD



· Charge Characteristics

1000AH Tubular Gel Residential Solar Battery , Home Battery System 1



1000AH Tubular Gel Residential Solar Battery , Home Battery System 21000AH Tubular Gel Residential Solar Battery , Home Battery System 3
