12.8V 300Ah Powerful Electric Car Battery Pack High Efficient Charge

12.8V 300Ah Powerful Electric Car Battery Pack High Efficient Charge
12.8V 300Ah Powerful Electric Car Battery Pack High Efficient Charge

Large Image :  12.8V 300Ah Powerful Electric Car Battery Pack High Efficient Charge

Product Details:
Place of Origin: China
Brand Name: HRESYS
Certification: CE/UL
Model Number: VHR VDA13450LFP
Payment & Shipping Terms:
Minimum Order Quantity: 10 Pcs
Price: Negotiable
Packaging Details: Box/carton(standard package)
Delivery Time: 30 DAYS
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1800000 PCS/YEAR

12.8V 300Ah Powerful Electric Car Battery Pack High Efficient Charge

Description
Nominal Capacity: 450Ah Nominal Voltage: 12.8V
Charge Voltage: 14.4V Voltage At End Of Discharge: 10.4V
Maximum Continuous Charge Current (CC Threshold): 225A Maximum Continuous Discharge Current: 450A
Charge Voltage-cell: 3.60V/cell Weight: 43(±2)kg
High Light:

electric vehicle battery pack

,

li ion battery for electric vehicle

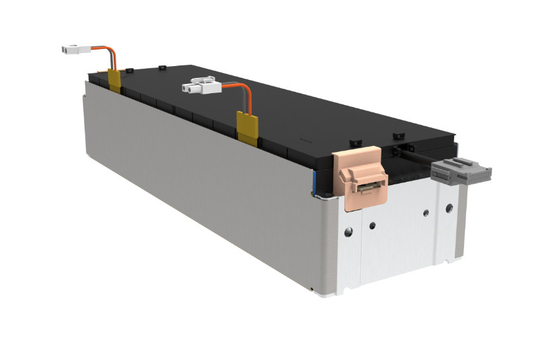

1.12.8V 300Ah LITHIUM ION(LFP) electrical vehicles BATTERY Module W: 423.5mm X D: 177.5mm X H: 203.0mm



  • Product Features

· Safety: 12V 450Ah deep cycle lithium ion battery, built-in BMS, none fire, none explosive

· Clean and Green energy, no toxic material contained

· Powerful: By China 2C rate cell

· Long life cycle: after 3000 cycles, there is 85% remaining capacity

· No memory effect,highly efficient charge anytime, no reduction of capacity

· Operation temperature: -20~60°C

· Good performance at high temperature and high temperature resistance

· Low self-discharge rate

· High energy density cells with good performance.



  • Product Specification​
Item Specification Remarks
Nominal Capacity 450Ah Standard discharge (1) capacity after standard charge (2)
Actual Capacity 465Ah Actual testing results according to the Standard discharge
Nominal Voltage 12.8V Configuration: 4S3P - VHR 32173184LFP-150Ah. Voltage of single cell is 3.2V.
Voltage at End of Charge 14.4V @ 25 ± 3℃
Voltage at End of Discharge 10.4V @ 25 ± 3℃
Nominal Continuous Charge Current (CC Threshold) 150A @ 25 ± 3℃
Nominal Continuous 250A @ 25 ± 3℃
Discharge Current
Maximum Continuous Charge Current (CC Threshold) 225A @ 25 ± 3℃
Peak-Charge (50%SOC 10s) 350A @ 25 ± 3℃
Charge Voltage-cell 3.60V/cell N.A.
Maximum Continuous 450A @ 25 ± 3℃
Discharge Current
Peak-Discharge (50%SOC 10s) 500A @ 25 ± 3℃
Voltage at End of Discharge-cell 2.60V/cell 0℃~60℃ N.A.
2.50V/cell -20℃~0℃
Operation Allowable Charge: 0~60°C N.A.
Temperature Range Discharge: -20~60°C N.A.
Continuous Discharge Power 1.92KW 50%SOC
Continuous Charge Power 0.8KW N.A
Self-discharge Rate/Month ≤4% @ 25 ± 3℃,50%SOC
Cycle Life(cycles) ≥5000 @ 25 ± 3℃,0.2C/0.5C @80%DOD
Operation Allowable ≤95% RH Operation
Humidity Range ≤85% RH Storage
Recommended 0~40°C Max. 6 month
Storage temperature
Weight 43(±2)kg N.A.



  • Dimension
Model No. Nominal Voltage Nominal Capacity Actual Dimension Weight Material Welding Manner
Capacity (W X D X H, mm)
VHR VDA13450LFP 12.8V 450Ah 465Ah Width:579.5mm (±2) 43(±2)kg Aluminum Laser welding
Depth: 177.3mm (±2)
Height: 203.0mm (±2)



12.8V 300Ah Powerful Electric Car Battery Pack High Efficient Charge 0



  • Application

12.8V 300Ah Powerful Electric Car Battery Pack High Efficient Charge 112.8V 300Ah Powerful Electric Car Battery Pack High Efficient Charge 2
