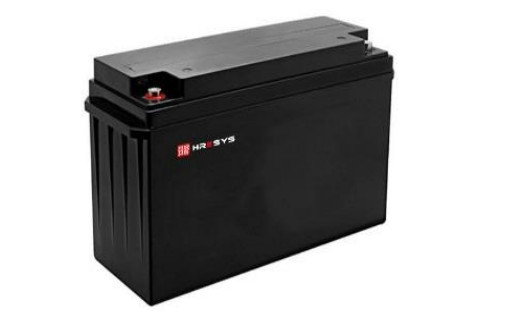

150AH Lithium Ion Motorcycle Battery With Short Circuit Production Function

150AH Lithium Ion Motorcycle Battery With Short Circuit Production Function
150AH Lithium Ion Motorcycle Battery With Short Circuit Production Function

Large Image :  150AH Lithium Ion Motorcycle Battery With Short Circuit Production Function

Product Details:
Place of Origin: China
Brand Name: HRESYS
Certification: CE/UL
Model Number: VHR ES12150LFP
Payment & Shipping Terms:
Minimum Order Quantity: 10 Pcs
Price: Negotiable
Packaging Details: Box/carton(standard package)
Delivery Time: 30 DAYS
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1800000 PCS/YEAR

150AH Lithium Ion Motorcycle Battery With Short Circuit Production Function

Description
Nominal Capacity@0.2C: 150Ah Nominal Voltage: 12.8V
Energy: 1920Wh Internal Resistance: ≤45m Ω
Cycle Life: ≥3000 Cycles Months Self Discharge: ≤3.5% Per Month At 25℃
Dimension(L × W × H × TH): 483 × 170 × 240 × 240mm Weight: Approx. 19.2Kg
High Light:

lithium battery for electric motorcycle

,

lifepo4 motorcycle battery

150AH High Capacity/ long cycle life Lifepo4 UPS/golf cart Lithium Ion Battery Pack



  • Superior Character

1, The capacity, resistance, voltage, platform time can maintain good consistency

2, very safe and reliable because of the short-circuit production function.

3, Super Long Service Life

4, High Energy Density by Adopting LFP Cells.

5, High Safety Ensured by Smart BMS.

6, Adaptability to a wide range of temperature: the battery can work at temperature between -20℃ and +65℃.



  • Application

Electric vehicle
Golf cart
Electric motorcycle
Electric boat
Electric forklift
Telecommunication
Distributed Grid Energy Storage system
Mining equipment
Solar energy storage system
Marine
Backup power
Household energy storage system



For example:

150AH Lithium Ion Motorcycle Battery With Short Circuit Production Function 0150AH Lithium Ion Motorcycle Battery With Short Circuit Production Function 1



  • Product Specification​
Electrical Characteristics
Nominal Voltage 12.8V
Nominal Capacity@0.2C 120Ah
Energy 1536Wh
Internal Resistance ≤45m Ω
Cycle Life ≥3000 Cycles
Months Self Discharge ≤3.5% per month at 25℃
Mechanical
Cell & Method IFR32700 N60, 15S20P
Plastic Case ABS
Dimension(L × W × H × TH) 409 × 177 × 224 × 224mm
Weight Approx. 14.6Kg
Terminal M8
Standard Charge
Charge Voltage 14.6 ± 0.2V
Charge Mode(CC/CV At 0℃~45℃ temperature, charged to 14.6V at a constant current of
0.2C, and then charged continuously with constant voltage of
14.6V until the current was not more than 0.02C.
Charge Current 24A
Max. Charge Current 60A
Standard Discharge
Discharge Current 24A
Max. Continuous Current 100A
Max. Pulse Current 200A(<3S)
Discharge Cut-off Voltage 10.0V
Operating Environment
Charge Temperature 0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity
Discharge Temperature —20℃ to 60℃(-4℉ to 140℉) @60±25% Relative Humidity
Storage Temperature 0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity
Water Dust Resistance IP55
Protection Parameter
Over-current Protection Current 300A
Over-charge Protection Voltage 15.2V
Over-discharge Protection Voltage 9.2V
High Temperature Protection 65℃





  • Charge Characteristics

Charge Characteristics @0.2C&0.5C, 25

150AH Lithium Ion Motorcycle Battery With Short Circuit Production Function 2



  • Factory Overview

150AH Lithium Ion Motorcycle Battery With Short Circuit Production Function 3150AH Lithium Ion Motorcycle Battery With Short Circuit Production Function 4
