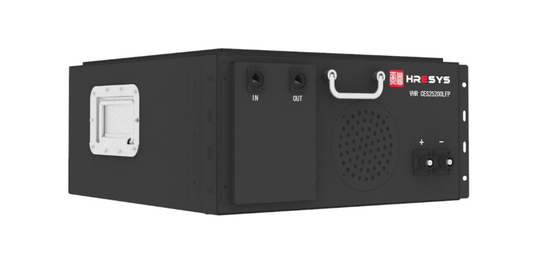

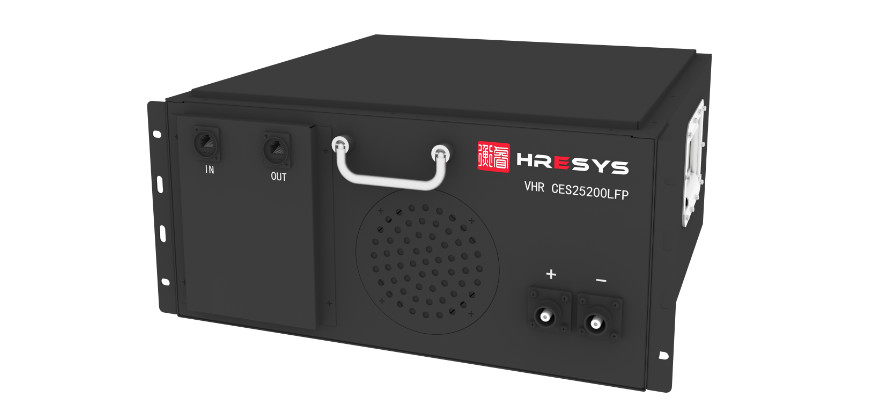

25V UPS Battery Pack Maximum Continuous Discharge Current 200A Dust Proof

25V UPS Battery Pack Maximum Continuous Discharge Current 200A Dust Proof
25V UPS Battery Pack Maximum Continuous Discharge Current 200A Dust Proof 25V UPS Battery Pack Maximum Continuous Discharge Current 200A Dust Proof 25V UPS Battery Pack Maximum Continuous Discharge Current 200A Dust Proof

Large Image :  25V UPS Battery Pack Maximum Continuous Discharge Current 200A Dust Proof

Product Details:
Place of Origin: China
Brand Name: HRESYS
Certification: CE/UL
Model Number: VHR CES25200LFP
Payment & Shipping Terms:
Minimum Order Quantity: 10 Pcs
Price: Negotiable
Packaging Details: Box/carton(standard package)
Delivery Time: 30 DAYS
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1800000 PCS/YEAR

25V UPS Battery Pack Maximum Continuous Discharge Current 200A Dust Proof

Description
Nominal Capacity: 200Ah Nominal Voltage: 25.6V
Charge Voltage: 28.8V Voltage At End Of Discharge: 21.4V
Maximum Continuous Charge Current (CC Threshold): 100A Maximum Continuous Discharge Current: 200A
Charge Voltage-cell: 3.80V/cell Weight: 54.6(±2)kg
High Light:

uninterruptible power supply battery

,

ups power battery

25V 200Ah LITHIUM ION(LFP) BATTERY Module W: 482.0 mm X D: 465.0 mm X H: 220.0mm



  • Product Overview​

HRESYS standard battery module unit has been specially designed in structure, which increases the reliability of the product. Meeting the user's needs, it has a unique shape design, the simple external connection is convenient for the construction. The installation operation mode increases the stability of the product structure, while considering the heat distribution design of the battery, that the overall temperature of the battery is balanced, and the battery does not fail prematurely because of the high temperature of a certain position.



  • Features and Benefits​

1. Robust Cell-Connection Mechanism

Laser welding process is applied for welding between Bus-bar and Cell poles to ensure the well contact and to reduce the resistance on the welding point.



2. Vertical Installation of Cells

Cells are installed vertically to improve the stability of the module and to reduce the space required



3. High Strength Case Material

Q235 T1.2 material is used for making the case to ensure high strength



4. Dust-proof, Ventilation, Anti-corrosion Design

Window-shades design to ensure well ventilation in case of gas released from cells during operation



  • Product Specification​
Item Specification Remarks
Nominal Capacity 200Ah Standard discharge (1) capacity after standard charge (2)
Nominal Voltage 25.6V Configuration: 8S2P - VHR 32173184LFP-100Ah. Voltage of single cell is 3.2V.
Charge Voltage 28.8V @ 25 ± 3℃
Voltage at End of Discharge 21.4V @ 25 ± 3℃
Maximum Continuous Charge Current (CC Threshold) 100A @ 25 ± 3℃
Charge Voltage-cell 3.80V/cell N.A.
Maximum Continuous 200A @ 25 ± 3℃
Discharge Current
Voltage at End of Discharge-cell 2.50V/cell N.A.
Operation Allowable Charge: 0~60°C N.A.
Temperature Range Discharge: -20~60°C N.A.
Continuous Discharge Power 2.56KW 50%SOC
Continuous Charge Power 1.02KW N.A
Self-discharge Rate/Month ≤4% @ 25 ± 3℃,50%SOC
Cycle Life(cycles) ≥5000 @ 25 ± 3℃,0.2C/0.5C @80%DOD
Operation Allowable ≤95% RH Operation
Humidity Range ≤85% RH Storage
Recommended 0~40°C Max. 6 month
Storage temperature
Weight 54.6(±2)kg N.A.

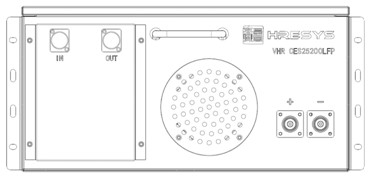

  • Dimension

25V UPS Battery Pack Maximum Continuous Discharge Current 200A Dust Proof 0



  • Cautions
Item Specification Remarks
Nominal Capacity 200Ah Standard discharge (1) capacity after standard charge (2)
Nominal Voltage 25.6V Configuration: 8S2P - VHR 32173184LFP-100Ah. Voltage of single cell is 3.2V.
Charge Voltage 28.8V @ 25 ± 3℃
Voltage at End of Discharge 21.4V @ 25 ± 3℃
Maximum Continuous Charge Current (CC Threshold) 100A @ 25 ± 3℃
Charge Voltage-cell 3.80V/cell N.A.
Maximum Continuous 200A @ 25 ± 3℃
Discharge Current
Voltage at End of Discharge-cell 2.50V/cell N.A.
Operation Allowable Charge: 0~60°C N.A.
Temperature Range Discharge: -20~60°C N.A.
Continuous Discharge Power 2.56KW 50%SOC
Continuous Charge Power 1.02KW N.A
Self-discharge Rate/Month ≤4% @ 25 ± 3℃,50%SOC
Cycle Life(cycles) ≥5000 @ 25 ± 3℃,0.2C/0.5C @80%DOD
Operation Allowable ≤95% RH Operation
Humidity Range ≤85% RH Storage
Recommended 0~40°C Max. 6 month
Storage temperature
Weight 54.6(±2)kg N.A.
