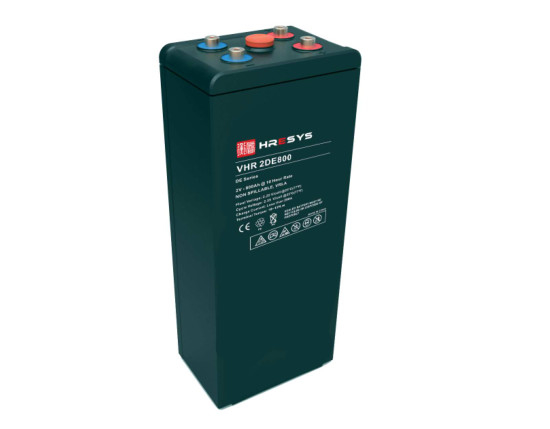

800AH Lead Acid IDC Battery , Power Backup Systems For Data Centers

800AH Lead Acid IDC Battery , Power Backup Systems For Data Centers
800AH Lead Acid IDC Battery , Power Backup Systems For Data Centers

Large Image :  800AH Lead Acid IDC Battery , Power Backup Systems For Data Centers

Product Details:
Place of Origin: China
Brand Name: HRESYS
Certification: CE
Model Number: VHR 2DE 800
Payment & Shipping Terms:
Minimum Order Quantity: 10 Pcs
Price: Negotiable
Packaging Details: Box/carton(standard package)
Delivery Time: 30 DAYS
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1800000 PCS/YEAR

800AH Lead Acid IDC Battery , Power Backup Systems For Data Centers

Description
Product Name: 2V Lead-Acid Batteries Application: Backup Power
Capacity: 800AH Nominal Voltage (V): 2
Float Charge Voltage: 2.25V/cell @25 ℃(-3mv/℃/cell) Internal Resistance: 0.33m Ohm (fully Charged @20℃)
Weight: 50 Kg (110.2 Lbs) Dimension: L229mm X W154mm X H555mm
High Light:

data center ups systems

,

battery backup for data centers

2V800AH Lead-acid Batteries for Telecommunications,UPS systems,IDC and other backup applications.L229mm x W154mm x H555mm.



  • Product Overview

HRESYS VHR 2DE 800 is long life VRLA AGM Battery.it has excellent quality,higher max.charge current value and max.discharge current value.800AH capacity and with corrosion resistance thick grid and advanced manufacturing technique, and it delivers high reliability performance and long float service life up to 15 years,highly suited for Telecommunication,UPS systems,IDC and other Backup applications.



  • Features and Benefits​

- Float service life up to15 years at 25℃(77℉).

- Thick flat plate design enables better cyclic applications.

- Flexible design for both horizontal and vertical installation at different locations.

- Low self discharge rate and high reliability,it provides better performance.

- Wide operation temperature range for multiple working scenarios.

- Flame retardant ABS case(UL 94V-0,optional).

- International standards compliance,i.e. IEC,EN,BS,CE,etc.



  • Product Specification
Nominal Voltage (V) 2
Designed floating life (25℃) 15 years
Nominal capacity(25 ℃) 800AH @C10(to 1.8Vpc)
Demensions L229mm×W154mm×H555mm(TH567.8mm)
Approx.Weight 50kg(110.2lbs)
Terminal type



Female copper insert M8(torque:10-12N.m)



Internal resistance Approx.0.33mOhm(fully charged @20℃)
Max.Charge current 200A
Max.DisCharge current(5s) 3200A
Short circuit current 9000A
Ambient Temperature Discharge: -40~60°C
Charge: -20~55 C
Storage: -20~45 C
Float Charge Voltage 2.25V/cell@25℃(-3mv/℃/cell)
Equalize charge voltage 2.35V/cell@25℃(-5mv/℃/cell)
Container Material ABS UL ( 94-V0 optional)
Self Discharge Approx. 2.5% per month @ 20°C



  • Applications

o Telcommunication

o Ups systems

o IDC

o Other backup applications



  • Complied standards

o IEC 60896-21/22

o GB/T 19638

o IEC61427

o JIS C8704

o BS6290 PART4



  • Management and Product Certificates

o ISO9001:2015

o ISO14001:2015

o OHSAS18001:2007

o CE Certificate



  • Battery Dimension

800AH Lead Acid IDC Battery , Power Backup Systems For Data Centers 0

800AH Lead Acid IDC Battery , Power Backup Systems For Data Centers 1



  • Performance Curves

· Charge Characteristics

800AH Lead Acid IDC Battery , Power Backup Systems For Data Centers 2



· DisCharge Characteristics(25)



800AH Lead Acid IDC Battery , Power Backup Systems For Data Centers 3



· Temperature vs float life



800AH Lead Acid IDC Battery , Power Backup Systems For Data Centers 4



· Self-Discharge Characteristics



800AH Lead Acid IDC Battery , Power Backup Systems For Data Centers 5



· Float voltage vs float life



800AH Lead Acid IDC Battery , Power Backup Systems For Data Centers 6



· Capacity vs temperature

800AH Lead Acid IDC Battery , Power Backup Systems For Data Centers 7



· Settings Recommendation



800AH Lead Acid IDC Battery , Power Backup Systems For Data Centers 8
