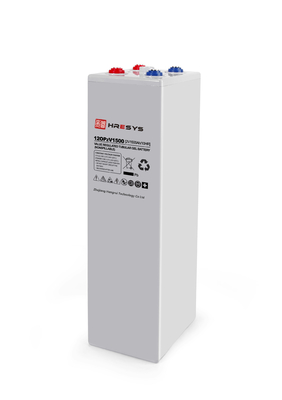

Deep Cycle Life Battery Energy Storage System 2V 1500AH OPzV For Telecom

Deep Cycle Life Battery Energy Storage System 2V 1500AH OPzV For Telecom
Deep Cycle Life Battery Energy Storage System 2V 1500AH OPzV For Telecom

Large Image :  Deep Cycle Life Battery Energy Storage System 2V 1500AH OPzV For Telecom

Product Details:
Place of Origin: China
Brand Name: HRESYS
Certification: CE
Model Number: 12 OPzV 1500
Payment & Shipping Terms:
Minimum Order Quantity: 10 Pcs
Price: Negotiable
Packaging Details: Box/carton(standard package)
Delivery Time: 30 DAYS
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1800000 PCS/YEAR

Deep Cycle Life Battery Energy Storage System 2V 1500AH OPzV For Telecom

Description
Product Name: 2 V Tubular Gel Batteries Application: Renewable Energy Storage, Telecom Use, Power Utilities Applications
Capacity: 1500 Ah Nominal Voltage (V): 2
Float Charge Voltage: 2.23V/block@25°C(-3mV/°/cell) Internal Resistance: Approx. 0.20 Ohm (fully Charged@20°C)
Weight: 107 Kg (236 Lbs) Dimension: L275mm X W210mm X H831mm
High Light:

ess energy storage system

,

rechargeable energy storage system

2V 1500AH Tubular Gel OPzV Deep Cycle-Life & High Reliable Batteries for renewable energy storage, Telecom use, power utilities applications, L275mm x W210mm x H831mm



  • Product Overview

HRESYS OPzV Series battery has powerful performance like, long cycle-life, maintenance free and high-level reliability with 20 years design life etc. HRESYS OPzV series complied DIN standard, IEC standard, Eurobat guide etc.

With specially designed robust die cast positive tubular plate and fumed gelled electrolyte. HRESYS OPzV Series fit perfectly in telecom power utilities, cyclic using, renewable energy storage applications at harsh working conditions.



  • Features and Benefits

- Low density electrolyte reduce corrosion and enable long service life

- Reliable maintenance-free and leakage-free construction

- Wide operating temperature range from -40°C to 60°C

- Tubular positive plate and fumed silica gel enables excellent deep cycle performance

- Compliance with Din standard

- Excellent deep discharge recovery capability

- Low self-discharge rate and long shelf life (1 year at 25°C)

- 20 years design life at floating condition



  • Applications

o Renewable energy

o Telecom

o UPS

o Utility



  •  Complied standards
    • IEC 60896-21/22
    • DIN40472
    • IEC61427
    • YD/T1360
    • Eurobat guide, long life
    • BS6290 part 4



  •  Management and Product Certificates
    • ISO9001:2015
    • ISO14001:2015
    • OHSAS18001:2007
    • CE Certificate



  •  Product Specification​
Nominal Voltage (V) 2
Designed floating life(25°C) 20+ Years
Nominal Capacity (25°C) 1500 Ah @ C10 (to 1.80Vpc)
Max. Charge Current 370 A
Max. Discharge Current 3000 A
Short Circuit current 8200 A
Dimension (mm) L275mm x W210mm x H831mm
Approx. Weight 107 kg (236 lbs)
Terminal Type Female Copper Insert M8(torque: 10~12N.m)
Internal Resistance Approx. 0.20 Ohm (fully charged)
Float Charge Voltage 2.23V/block @25℃
Equalize Charge Voltage 2.35V @25℃
Self-Discharge Approx. 2.0% per month @ 20°C
Ambient Temperature Discharge: -40~60°C
Charge: -30~55 C
Storage: -25~45 C
Container Material ABS UL (94-V0 optional)





  •  Battery Dimension
    • L275mm x W210mm x H831mm

Deep Cycle Life Battery Energy Storage System 2V 1500AH OPzV For Telecom 0



  •  Performance Curves



· Cyclic Characteristics

High cycle performance: up to 1800 cycle at 800%DOD



· Charge Characteristics

Deep Cycle Life Battery Energy Storage System 2V 1500AH OPzV For Telecom 1



Deep Cycle Life Battery Energy Storage System 2V 1500AH OPzV For Telecom 2Deep Cycle Life Battery Energy Storage System 2V 1500AH OPzV For Telecom 3
