Product Details:
|
| Product Name: | 2 V Tubular Flooded Batteries | Capacity: | 600 Ah |
|---|---|---|---|
| Float Charge Voltage: | 13.5~13.8V/block @25 C | Approx. Weight: | Without Electrolyte: 32.2Kg (71.0 Lbs) With Electrolyte: 43.9Kg (96.8 Lbs) |
| Application: | Utility, UPS, Telecom And Renewable Energy | Nominal Voltage (V): | 2 |
| Internal Resistance: | Approx. 0.52 MOhm (fully Charged @ 20°C) | Dimension: | L145mm×W206mm×H701mm |
| High Light: | 12v rechargeable lead acid battery,deep cycle lead acid battery |
||

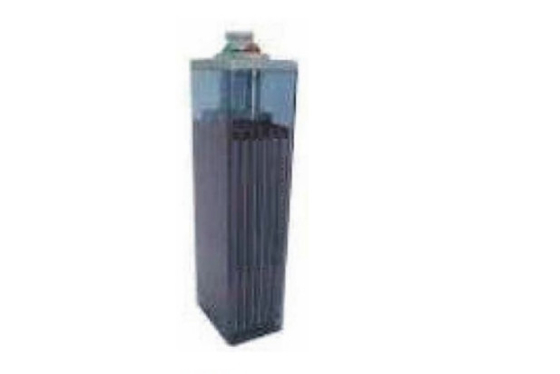

2 V 600 AH Tubular Flooded Batteries for Utility, UPS, Telecom and Renewable Energy, 6OpzS600,L145mm×W206mm×H701mm
The combination of the tubular positive plates and the lead selenium/ low antimony alloy provides the best possible combination in lead acid plate technology. Hresys OPzS Series offers excellent deep cyclic performance, and extra-long service life, as well as recovery performance.
| Nominal Voltage (V) | 2 |
| Nominal Capacity (25 C) | 600 Ah @ C10 (to 1.80Vpc) |
| Dimension (mm) | L145mm×W206mm×H701mm |
| Approx. Weight |
Without electrolyte: 32.2Kg (71.0 lbs) With electrolyte: 43.9Kg (96.8 lbs) |
| Terminal Type | Female Copper Insert M8 (torque:10~12N.m) |
| Internal Resistance | Approx. 0.52 mOhm (fully charged @ 20°C) |
| Max. Charge Current | 150 A |
| Electrolyte | Diluted sulphuric acid of 1.240 g/cm (20°C) |
| Ambient Temperature | Discharge: -20~60°C Charge: -20~55 °C Storage: -15~45°C |
| Float Charge Voltage | 2.23V @25 C (-3mV / C/ cell) |
| Equalize Charge Voltage | 2.35V @25 C |
| Container Material | SAN |
BS6290 part 4
