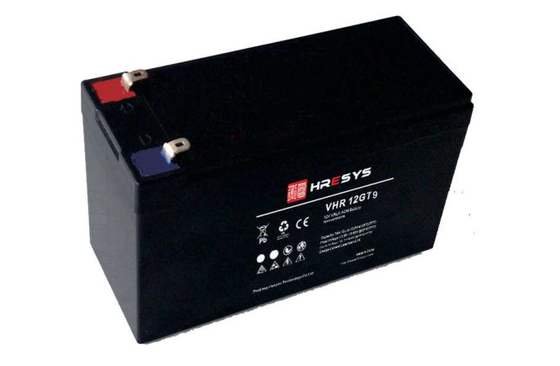

12 V 9 AH Top Terminal VRLA AGM Battery for General Purpose , L151mm x W65mm x H101mm

12 V 9 AH Top Terminal VRLA AGM Battery for General Purpose , L151mm x W65mm x H101mm
12 V 9 AH Top Terminal VRLA AGM Battery for General Purpose , L151mm x W65mm x H101mm

Large Image :  12 V 9 AH Top Terminal VRLA AGM Battery for General Purpose , L151mm x W65mm x H101mm

Product Details:
Place of Origin: China
Brand Name: HRESYS
Certification: CE
Model Number: VHR 12GT9
Payment & Shipping Terms:
Minimum Order Quantity: 10 Pcs
Price: Negotiable
Packaging Details: Box/carton(standard package)
Delivery Time: 30 DAYS
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1800000 PCS/YEAR

12 V 9 AH Top Terminal VRLA AGM Battery for General Purpose , L151mm x W65mm x H101mm

Description
Product Name: 12 V Lead-acid Batteries Application: General Use
Capacity: 9 Ah Nominal Voltage (V): 12
Float Charge Voltage: 13.6V @25℃ Internal Resistance: ≤ 0.020 Ohm (fully Charged)
Weight: 2.6 Kg (5.7 Lbs) Dimension: L151mm X W65mm X H101mm
High Light:

12v rechargeable lead acid battery

,

deep cycle lead acid battery

12 V 9 AH Top Terminal VRLA AGM Battery for General Purpose , L151mm x W65mm x H101mm



  • Product Overview

HRESYS GT series Valve Regulated Lead Acid AGM technology Battery is specially designed for telecommunication, utilities, ups systems and emergency light system and other general purpose applications.12V series available from 7Ah to 250Ah.With advanced manufacturing technique and industry scale, GT series delivers high energy density and high reliability performance.



  • Features and Benefits​
  1. 10 years design floating life at 25°C
  2. Standard sizes for general purpose
  3. Flexible design for multiple installation space
  4. Low self-discharge rate
  5. Self-regulating pressure relief valve with flame arrester
  6. Maintenance free and easy to install



  • Applications
  1. Electric Tools and Toys
  2. Cable Television
  3. Uninterrupted Power Supply(UPS)
  4. Emergency Power Supply



  • Working Scenarios
  1. Batteries are mainly working as backup power with not many cycles
  2. Backup time normally doesn’t exceed 2 hours
  3. Shadow cyclic use and cycles not many

12 V 9 AH Top Terminal VRLA AGM Battery for General Purpose , L151mm x W65mm x H101mm 0



  • Complied standards

o IEC 60896-21/22

o GB/T 19638

o IEC61427

o JIS C8704

o BS6290 PART4



  • Management and Product Certificates

o ISO9001:2015

o ISO14001:2015

o OHSAS18001:2007

o CE Certificate



  • Product Specification
Nominal Voltage (V) 12
Designed Floating Life (25℃) 5 Years
Nominal Capacity (25℃) 9 Ah@ C20 (to 1.75Vpc)
Dimension (mm) L151mm x W65mm x H101mm
Approx. Weight 2.6 kg (5.7 lbs)
Terminal Type Fasten Tab F2
Internal Resistance ≤ 0.020m Ohm (fully charged @25℃)
Max. Charge Current 2.7 A
Max. Discharge Current(5S) 135 A
Short Circuit Current 720 A
Self Discharge Approx. 2.5% per month @ 20℃
Ambient Temperature Discharge: -20~55℃
Charge: -20~50℃
Storage: -20~45℃
Float Charge Voltage 13.6V @25℃
Equalize Charge Voltage 14.4V @25℃
Container Material ABS (UL94-V0 optional)



  • Battery Dimension

12 V 9 AH Top Terminal VRLA AGM Battery for General Purpose , L151mm x W65mm x H101mm 1



  • Performance Curves

12 V 9 AH Top Terminal VRLA AGM Battery for General Purpose , L151mm x W65mm x H101mm 2
