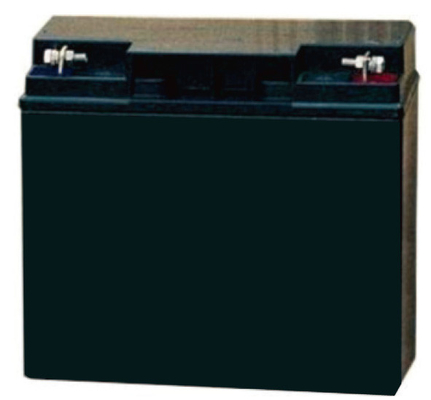

12 V 10 AH Top Terminal VRLA AGM Battery for General Purpose , L151mm x W98mm x H101mm

12 V 10 AH Top Terminal VRLA AGM Battery for General Purpose , L151mm x W98mm x H101mm
12 V 10 AH Top Terminal VRLA AGM Battery for General Purpose , L151mm x W98mm x H101mm

Large Image :  12 V 10 AH Top Terminal VRLA AGM Battery for General Purpose , L151mm x W98mm x H101mm

Product Details:
Place of Origin: China
Brand Name: HRESYS
Certification: CE
Model Number: VHR 12GT10
Payment & Shipping Terms:
Minimum Order Quantity: 10 Pcs
Price: Negotiable
Packaging Details: Box/carton(standard package)
Delivery Time: 30 DAYS
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1800000 PCS/YEAR

12 V 10 AH Top Terminal VRLA AGM Battery for General Purpose , L151mm x W98mm x H101mm

Description
Product Name: 12 V Lead-acid Batteries Application: General Use
Capacity: 10 Ah Nominal Voltage (V): 12
Float Charge Voltage: 13.6V @25℃ Internal Resistance: ≤ 0.020 Ohm (fully Charged)
Weight: 3.44 Kg (7.58 Lbs) Dimension: L151mm X W98mm X H101mm
High Light:

12v rechargeable lead acid battery

,

deep cycle lead acid battery

12 V 10 AH Top Terminal VRLA AGM Battery for General Purpose , L151mm x W98mm x H101mm



  • Product Overview

HRESYS Long life general purpose VRLA Top Terminal GT series batteries with a design life of 10+ years. Applications includes UPS, telecoms, emergency lighting and standby power. The batteries comply to the most popular international standards, such as IEC 60896-21/22, JIS C8704, GB/T 19638.



  • Features and Benefits​
  1. Valve Regulated Lead Acid AGM technology
  2. High energy density and high reliability performance
  3. Standard sizes for general purpose
  4. Low self-discharge rate
  5. Maintenance free
  6. 12V series available from 7Ah to 250Ah



  • Applications
  1. UPS
  2. Emergency Power Supply
  3. Electric Tools and Toys
  4. Cable Television

12 V 10 AH Top Terminal VRLA AGM Battery for General Purpose , L151mm x W98mm x H101mm 0



  • Working Scenarios



  1. Batteries are mainly working as backup power with not many cycles
  2. Backup time normally doesn’t exceed 2 hours
  3. Shadow cyclic use and cycles not many



  • Product Specification
Nominal Voltage (V) 12
Designed Floating Life (25℃) 5 Years
Nominal Capacity (25℃) 10 Ah@ C20 (to 1.75Vpc)
Dimension (mm) L151mm x W98mm x H101mm
Approx. Weight 3.44 kg (7.58 lbs)
Terminal Type Fasten Tab F2
Internal Resistance ≤ 0.020m Ohm (fully charged @25℃)
Max. Charge Current 3.0 A
Max. Discharge Current(5S) 180 A
Short Circuit Current 630 A
Self Discharge Approx. 2.5% per month @ 20℃
Ambient Temperature Discharge: -20~55℃
Charge: -20~50℃
Storage: -20~45℃
Float Charge Voltage 13.6V @25℃
Equalize Charge Voltage 14.4V @25℃
Container Material ABS (UL94-V0 optional)



  • Complied standards

o IEC 60896-21/22

o GB/T 19638

o IEC61427

o JIS C8704

o BS6290 PART4



  • Management and Product Certificates

o ISO9001:2015

o ISO14001:2015

o OHSAS18001:2007

o CE Certificate



  • Battery Dimension

12 V 10 AH Top Terminal VRLA AGM Battery for General Purpose , L151mm x W98mm x H101mm 1



  • Performance Curves

12 V 10 AH Top Terminal VRLA AGM Battery for General Purpose , L151mm x W98mm x H101mm 2
