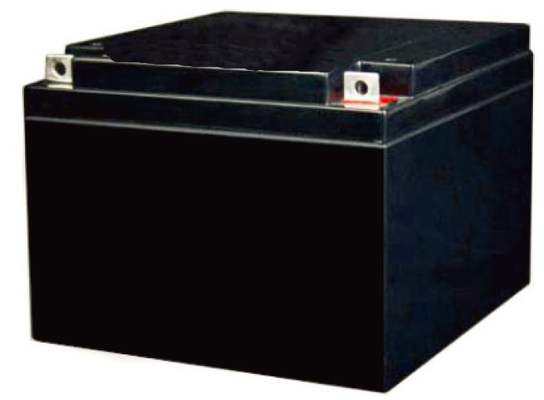

12 V 24 AH Top Terminal VRLA AGM Battery for General Purpose , L178mm x W167mm x H125mm

12 V 24 AH Top Terminal VRLA AGM Battery for General Purpose , L178mm x W167mm x H125mm
12 V 24 AH Top Terminal VRLA AGM Battery for General Purpose , L178mm x W167mm x H125mm

Large Image :  12 V 24 AH Top Terminal VRLA AGM Battery for General Purpose , L178mm x W167mm x H125mm

Product Details:
Place of Origin: China
Brand Name: HRESYS
Certification: CE
Model Number: VHR 12GT24
Payment & Shipping Terms:
Minimum Order Quantity: 10 Pcs
Price: Negotiable
Packaging Details: Box/carton(standard package)
Delivery Time: 30 DAYS
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1800000 PCS/YEAR

12 V 24 AH Top Terminal VRLA AGM Battery for General Purpose , L178mm x W167mm x H125mm

Description
Product Name: 12 V Lead-acid Batteries Application: General Use
Capacity: 24 Ah Nominal Voltage (V): 12
Float Charge Voltage: 13.6V @25℃ Internal Resistance: ≤ 0.010 Ohm (fully Charged)
Weight: 8.2 Kg (18.1 Lbs) Dimension: L178mm X W167mm X H125mm
High Light:

flooded lead acid battery

,

deep cycle lead acid battery

12 V 24 AH Top Terminal VRLA AGM Battery for General Purpose , L178mm x W167mm x H125mm



  • Product Overview

HRESYS Valve Regulated Lead Acid Battery GT series is Top terminal AGM technology battery designed for general use applications. By combining the newly developed paste formula with up-to-date AGM structures and industry scale, GT series delivers high energy density and high reliability performance, highly suited for UPS systems, security and alarm systems, telecommunication, utilities, emergency light systems, and other backup applications.



  • Features and Benefits​
  1. Standard sizes for general purpose
  2. Flexible design for multiple installation space
  3. Low self-discharge, long shelf life, wide operation temperature Range
  4. Self-regulating pressure relief valve with flame arrester
  5. Maintenance free and easy to install



  • Applications
  1. Uninterrupted Power Supply(UPS)
  2. Emergency Power Supply
  3. Electric Tools and Toys
  4. Cable Television

12 V 24 AH Top Terminal VRLA AGM Battery for General Purpose , L178mm x W167mm x H125mm 0



  • Working Scenarios
  1. Batteries are mainly working as backup power with not many cycles
  2. Backup time normally doesn’t exceed 2 hours
  3. Shadow cyclic use and cycles not many



  • Product Specification
Nominal Voltage (V) 12
Designed Floating Life (25℃) 5 Years
Nominal Capacity (25℃) 24 Ah@ C20 (to 1.75Vpc)
Dimension (mm) L178mm x W167mm x H125mm
Approx. Weight 8.2 kg (18.1 lbs)
Terminal Type Fasten Tab F2
Internal Resistance ≤ 0.010m Ohm (fully charged @25℃)
Max. Charge Current 7.2 A
Max. Discharge Current(5S) 310 A
Short Circuit Current 1000 A
Self Discharge Approx. 2.5% per month @ 20℃
Ambient Temperature Discharge: -20~55℃
Charge: -20~50℃
Storage: -20~45℃
Float Charge Voltage 13.6V @25℃
Equalize Charge Voltage 14.4V @25℃
Container Material ABS (UL94-V0 optional)



  • Complied standards

o IEC 60896-21/22

o GB/T 19638

o IEC61427

o JIS C8704

o BS6290 PART4



  • Management and Product Certificates

o ISO9001:2015

o ISO14001:2015

o OHSAS18001:2007

o CE Certificate



  • Battery Dimension

12 V 24 AH Top Terminal VRLA AGM Battery for General Purpose , L178mm x W167mm x H125mm 1



  • Performance Curves

12 V 24 AH Top Terminal VRLA AGM Battery for General Purpose , L178mm x W167mm x H125mm 2
